MCR SERIES

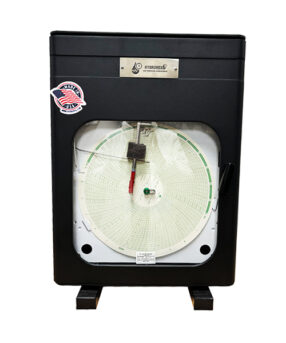

Pressure Chart Recorder

Pressure chart recorder mechanical standard 12″ circular pressure test recorders up to 30000 Psi, Battery, Aluminum Housing, designed to measure flow, static pressure and temperature in all industrial pressures applications. Is available in 1 to 2 or 3 pens configurations. Quartz USA / OGME in Houston.

Physical:

Housing: Cast Aluminum or Pelican Case
Dimensions: Overall 22” x 14” x 8”
Weight: 20 pounds
Mounting: Panel mount, 2” pipe mount, shock mount or stand and handle
Security: Optional locking hasp
Coating: black powder coat

Performance:

Accuracy to 1% of full scale for pressure elements and temperature elements
Temperature: -40 to +300 degrees Fahrenheit
Up to 50’ of Capillary

System Weight: 20 lbs / Dimensions 22″x 14″x 18″ – Shipment Weight 25 lbs / Dimensions: 24″ x 16″ x 12″ – HS Code: 9026200000

MCR REX SERIES | ECONOMIC, DURABLE, SAFE & EASY TO OPERATE | MADE IN USA

Mechanical Pressure & Temperature Chart Recorder

Pressure chart recorder mechanical standard 12″ circular pressure test recorders, Battery, Aluminum Housing, designed to measure flow, static pressure and temperature in all industrial pressures applications. Is available in 1 to 2 or 3 pens configurations. Quartz USA / OGME in Houston.
PC-11 Battery intrinsically safe 1.5 volts “C” cell powered eleven speed rotary motor.
Circular time ranges rotation speed options : 1HOUR – 96MIN – 12HR – 1DAY – 2DAY – 7DAYS – 8DAYS-14DAYS – 16DAYS – 31DAYS & 32 DAYS.
Recorder PEN: Pressure RED, Temperature PEN blue (up to 3 elements pens available)
All stainless steel 316 machinery, helical coil, tubing, fittings and hardware.

Options:

Mounting Style: Panel mount / Wall mount – Pipe mount – Portable handel and stand.
Aluminum housing or Pelican case weatherproof.
Dual elements (pressure ranges or temperature)
